- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://uk.asus.com
- Brand Name
- TUF
- Product Line
- Prime
- Product Type
- Gaming Desktop Motherboard
Intel®B760 (LGA 1700) micro-ATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, SATA 6 Gbps, rear USB 10Gbps, front USB 5Gbps Type-C®, Aura Sync
- Ready for Advanced AI PC:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel®processors
- Ultrafast Connectivity:PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 10Gbps, front USB 5Gbps Type-C®
- Comprehensive Cooling:VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

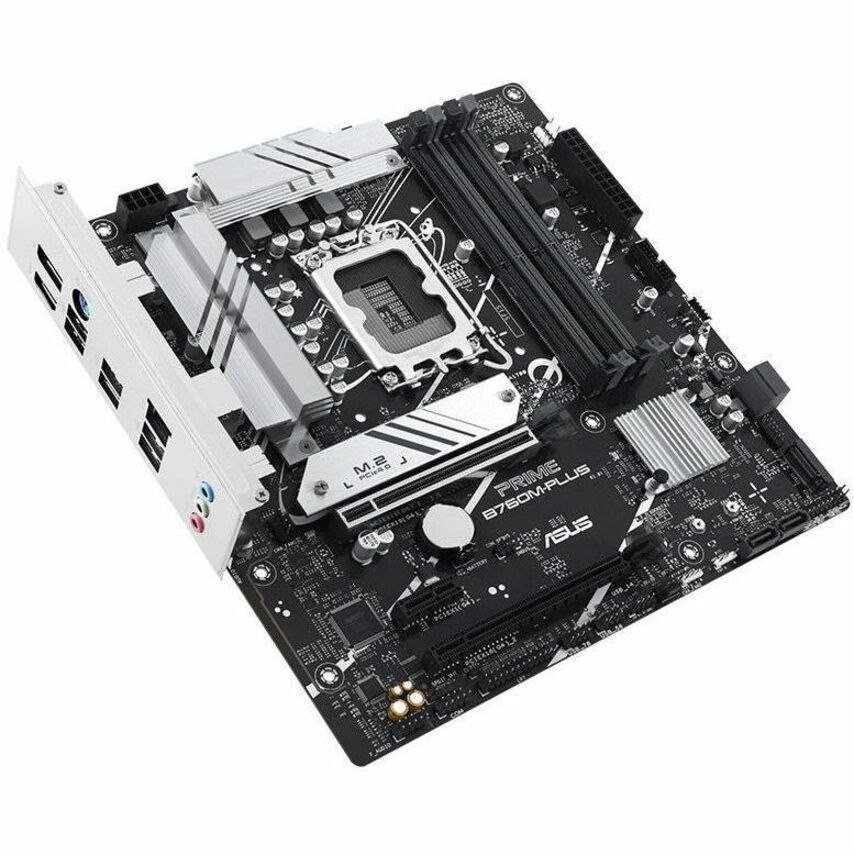

PRIME B760M-PLUS
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th& 13thGen Intel®Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
- Technical Information
- AI-powered
- Yes
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- B760
- Processor Socket
- Socket LGA-1700
- Processor Generation Supported
- 14th Gen
- 13th Gen
- 12th Gen
- Processor Supported
- Pentium Gold
- Celeron
- Core
- Memory
- Number of Memory Slots
- 4
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 192 GB
- Memory Technology
- DDR5 SDRAM
- Memory Speed Supported
- 7200 MHz
- 7000 MHz
- 6800 MHz
- 6600 MHz
- 6400 MHz
- 6200 MHz
- 6000 MHz
- 5800 MHz
- 5600 MHz
- 5400 MHz
- 5200 MHz
- 5000 MHz
- 4800 MHz
- Error Checking
- ECC
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 5
- 10
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Gigabit Ethernet
- Yes
- 2.5Gigabit Ethernet
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 3
- PCI Express Standard
- PCI Express 4.0
- Total Number of PCI Express Slots
- 3
- Number of PCI Express x1 Slots
- 1
- Number of PCI Express x16 Slots
- 2
- Interfaces/Ports
- Total Number of USB Ports
- 6
- HDMI
- Yes
- HDMI Version
- 2.1
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 1
- Onboard Interfaces
- Number of SATA Interfaces
- 4
- Number of M.2 Interfaces
- 2
- Total Number of Onboard USB Ports
- 8
- Number of Onboard USB 2.0 Ports
- 5
- Onboard S/PDIF Header
- Yes
- Physical Characteristics
- Form Factor
- Micro ATX
- Width
- 243.8 mm
- Depth
- 243.8 mm
- Weight (Approximate)
- 1.56 kg
- Miscellaneous
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
