- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://uk.asus.com
- Brand Name
- Asus
- Product Line
- Prime
- Packaged Quantity
- 1
- Product Type
- Desktop Motherboard

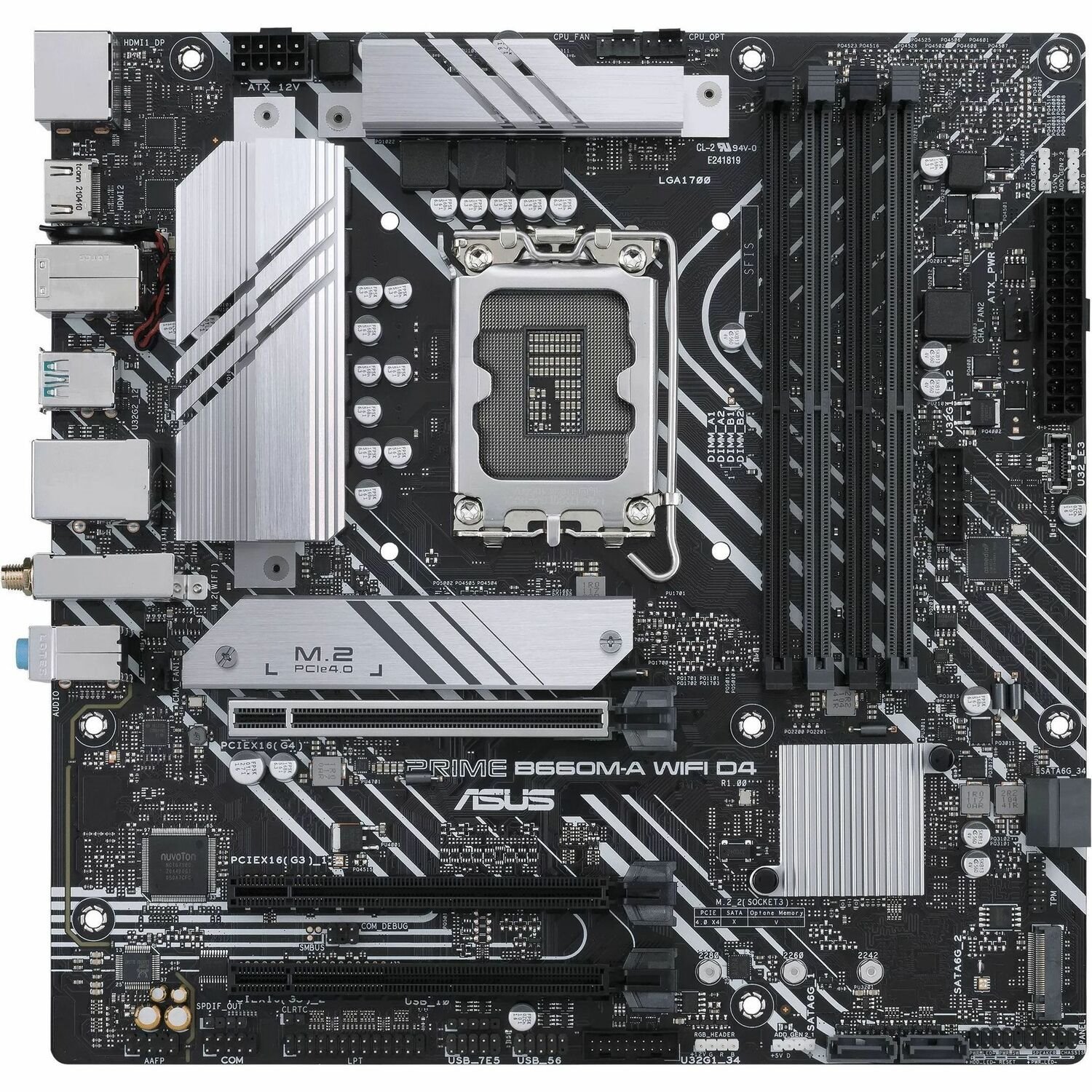

Intel® B660 (LGA 1700) mATX motherboard with PCIe 4.0, two M.2 slots, Intel® 1Gb Ethernet, Intel® Wi-Fi 6 , DP,2 x HDMI® , rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Aura Sync
- Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
- Ultrafast connectivity : Intel® Wi-Fi 6, PCIe 4.0, Intel® 1 Gb Ethernet ,rear USB 3.2 Gen 2 Type-A and front USB 3.2 Gen 1 Type-A and Type-C®
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
PRIME
ASUS Prime motherboards are designed to harness the full potential of13th and 12th Gen Intel® processors . In addition to featuring robust power design and innovative cooling solutions, the Prime B660 offers users and PC builders intelligent performance-enhancing options that can be configured via intuitive software and firmware. The ASUS PRIME B660M-A WIFI D4 delivers a futuristic PC design with black and white finishes, space shuttle-inspired elements, and a metal nameplate and PCB shield.
FLEXIBILITY
The ASUS Prime series is built on comprehensive controls. The Prime B660s feature a wealth of versatile options to tune every aspect of your system, including performance tweaks to perfectly match your work pace and maximize your productivity
- Warranty
- Limited Warranty
- 3 Year
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- B660
- Total Processor Supported
- 1
- Processor Socket
- Socket LGA-1700
- Processor Generation Supported
- 14th Gen
- 13th Gen
- 12th Gen
- Processor Supported
- Pentium Gold
- Celeron
- Core
- Memory
- Number of Memory Slots
- 4
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 128 GB
- Memory Technology
- DDR4 SDRAM
- Memory Speed Supported
- 5333 MHz
- 5000 MHz
- 4800 MHz
- 4600 MHz
- 4400 MHz
- 4266 MHz
- 4000 MHz
- 3733 MHz
- 3600 MHz
- 3466 MHz
- 3400 MHz
- 3333 MHz
- 3200 MHz
- 3000 MHz
- 2933 MHz
- 2800 MHz
- 2666 MHz
- 2400 MHz
- 2133 MHz
- Intel Optane Memory Ready
- Yes
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 1
- 5
- 10
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 5.2
- Gigabit Ethernet
- Yes
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11 a/b/g/n/ac/ax
- I/O Expansions
- Total Number of Expansion Slots
- 3
- PCI Express Standard
- PCI Express 4.0
- PCI Express 3.0
- Total Number of PCI Express Slots
- 3
- Number of PCI Express x16 Slots
- 3
- Interfaces/Ports
- Total Number of USB Ports
- 6
- Number of USB 3.2 Gen 2 Type-A Ports
- 2
- HDMI
- Yes
- HDMI Version
- 2.1
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 1
- Onboard Interfaces
- Number of SATA Interfaces
- 4
- Number of M.2 Interfaces
- 2
- Total Number of Onboard USB Ports
- 10
- Number of Onboard USB 2.0 Ports
- 5
- Onboard S/PDIF Header
- Yes
- Physical Characteristics
- Form Factor
- Micro ATX
- Width
- 244 mm
- Depth
- 244 mm
- Miscellaneous
- Package Contents
- Prime B660M-A WIFI D4 Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x ASUS Wi-Fi moving antennas
- 1 x I/O Shield
- 1 x M.2 Rubber Package
- 1 x M.2 SSD screw package
- 1 x Support DVD
- 1 x User manual
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
