- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://uk.asus.com
- Brand Name
- Asus
- Product Line
- Pro
- Product Type
- Workstation Motherboard
Intel®W790 (LGA 4677) CEB workstation motherboard, PCIe 5.0 x16, M.2, 10G and 2.5G LAN, Server-grade Remote Management, 12+1+1 power stages, front and Rear USB 3.2 Gen 2x2 Type-C
- Ready for Advanced AI PC:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel®LGA 4677 socket:Ready for Intel Xeon®W-3400 & W-2400 processors
- CPU and memory overclocking:Supports for up to 2TB of ECC R-DIMM DDR5 memory (2DPC)
- Ultrafast connectivity:5 PCIe 5.0 x16 slots, 10G & 2.5G LAN, 2 M.2, front and rear USB 3.2 Gen 2x2 Type-C®and 3 SlimSAS
- Server-grade IPMI remote management:Hardware and software-level with ASUS IPMI expansion card support, plus a real-time monitoring and management software - ASUS Control Center Express
- Robust power and thermal design:12+1+1 power stages, 8-pin PCIe power connector, Massive VRM, chipset and M.2 heatsinks and M.2 backplate
- Trusted stability:Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility
Performance, Productivity, Proven
The Pro WS W790 series workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W790 series melds no-compromise engineering with incredible aesthetics.
ASUS W790 motherboards go above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- AI-powered
- Yes
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- W790
- Processor Socket
- Socket LGA-4677
- Processor Supported
- Xeon W
- Memory
- Number of Memory Slots
- 8
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 2 TB
- Memory Technology
- DDR5 SDRAM
- Memory Speed Supported
- 6800 MHz
- 6600 MHz
- 6400 MHz
- 6200 MHz
- 6000 MHz
- 5800 MHz
- 5600 MHz
- 5400 MHz
- 5200 MHz
- 5000 MHz
- 4800 MHz
- Error Checking
- ECC
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 5
- 10
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Gigabit Ethernet
- Yes
- 2.5Gigabit Ethernet
- Yes
- 10Gigabit Ethernet
- Yes
- Wireless LAN
- No
- I/O Expansions
- Total Number of Expansion Slots
- 5
- PCI Express Standard
- PCI Express 5.0
- Total Number of PCI Express Slots
- 5
- Number of PCI Express x16 Slots
- 5
- Interfaces/Ports
- Total Number of USB Ports
- 13
- Number of USB 3.2 Gen 2 Type-A Ports
- 4
- S/PDIF
- Yes
- VGA
- Yes
- HDMI
- Yes
- HDMI Version
- 2.1
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 2
- Onboard Interfaces
- Number of SATA Interfaces
- 4
- Number of M.2 Interfaces
- 2
- Total Number of Onboard USB Ports
- 7
- Number of Onboard USB 2.0 Ports
- 4
- Physical Characteristics
- Form Factor
- SSI CEB
- Height
- 50 mm
- Width
- 305 mm
- Depth
- 277 mm
- Weight (Approximate)
- 1.81 kg
- Miscellaneous
- Package Contents

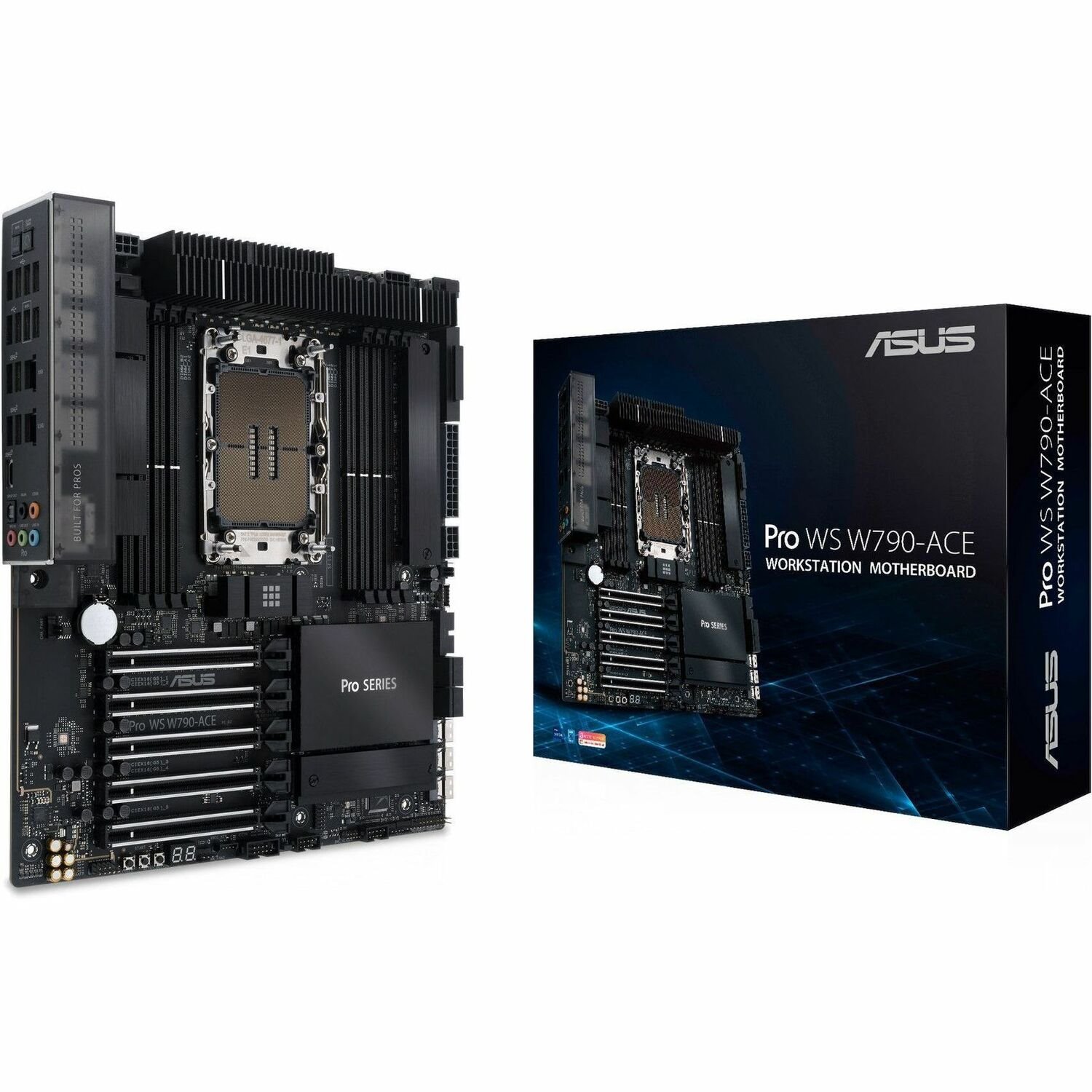

- Pro WS W790-ACE Workstation Motherboard
- 2 x SATA 6Gb/s cables
- 1 x Q-connector
- 1 x M.2 Rubber Package(s)
- 1 x M.2 backplate Rubber Package(s)
- 1 x CPU guard for LGA 4677 E1A
- 1 x CPU guard for LGA 4677 E1B
- 1 x ACC Express Activation Key Card
- 1 x User guide
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
