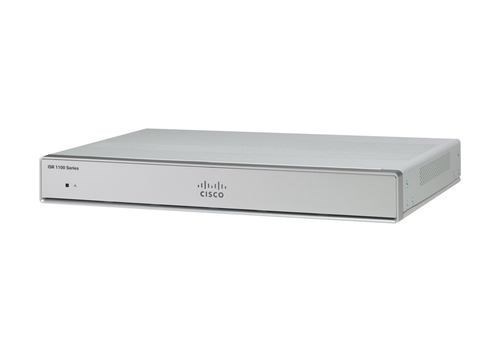

Cisco ISR 1000 C1161X-8P Router

  • Part: 1152984
£969.00

Availability

In Stock

The Cisco® 1000 Series Integrated Services Routers (ISR 1000 Series) portfolio has been steadily expanding over the years to provide our customers with the flexibility they need. The ISR 1000 Series combines routing, switching, Wi-Fi, integrated security, and DSL and LTE uplink connectivity options in a single, lightweight, high-performance device. Choose between the traditional Cisco IOS® XE or controller-managed Cisco IOS XE SD-WAN software to deploy your network quickly and reliably on all Cisco ISR 1000 Series routers. With a simple and flexible pay-as-you-grow model, you purchase network capacity only when you need it.

Key features

  • Industry-leading hardware coupled with feature-rich software combine to make high-performance small-office routers. Up to 800 Mbps IMIX encrypted throughput.
  • Latest-generation LTE uplink technologies, including dual-carrier support and carrier aggregation, with 5G support coming soon.
  • Flexible network management solutions, ranging from local WebUI support to cloud-hosted and on-premises SD-WAN controllers.
  • Wi-Fi 6-capable wireless connectivity embedded into a small-form-factor, fanless, all-in-one device.
  • Advanced security features available on-box, including Enterprise Firewall with Application Awareness, IPS/IDS, Advanced Malware Protection, URL filtering, and Cisco Umbrella® Secure Internet Gateway (SIG) (Secure Access Service Edge [SASE]).


  • General Information
    • Manufacturer
    • Cisco Systems, Inc
    • Manufacturer Website Address
    • http://www.cisco.com
    • Brand Name
    • Cisco
    • Product Series
    • ISR 1000
    • Product Type
    • Router

  • Interfaces/Ports
    • Total Number of Ports
    • 9
    • USB Standard
    • USB 3.0 Type A
    • Number of Network (RJ-45) Ports
    • 8
    • Number of WAN Ports
    • 1
  • I/O Expansions
    • Number of Total Expansion Slots
    • 1
    • Expansion Slot Type
    • SFP
  • Network & Communication
    • Ethernet Technology
    • Gigabit Ethernet
    • Network Technology
    • 1000Base-T
    • 1000Base-X
    • Networking Standards
    • IEEE 802.3ah
    • IEEE 802.1ag
    • IEEE 802.3at
    • IEEE 802.3af
    • IEEE 802.11i
    • IEEE 802.11r
  • Memory
    • Standard Memory
    • 8 GB
  • Power Description
    • PoE (RJ-45) Port
    • Yes
    • Power Consumption
    • 20.10 W
    • Power Source
    • Power Supply
  • Physical Characteristics
    • Form Factor
    • Desktop
    • Height
    • 41.9 mm
    • Width
    • 274.3 mm
    • Depth
    • 199.4 mm
    • Weight (Approximate)
    • 1.58 kg
