- General Information
- Manufacturer
- Eaton Corporation
- Manufacturer Website Address
- http://www.powerquality.eaton.com/UK/
- Brand Name
- Eaton
- Product Series
- 9SX
- Product Type
- Double Conversion Online UPS
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Plug/Connector Type
- Hardwired
- Receptacle Type
- IEC 60320 C13
- IEC 60320 C19
- Hardwired

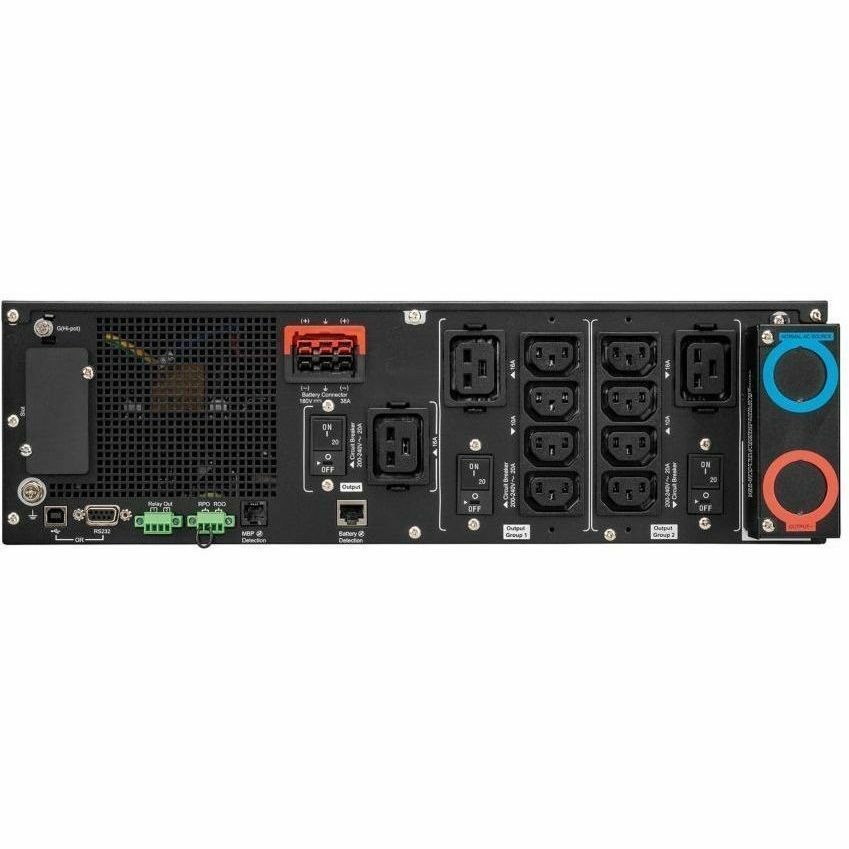

- Receptacle Detail
- 8 x IEC 60320 C13
- 3 x IEC 60320 C19
- 1 x Hardwired
- Phase
- Single Phase
- Efficiency Detail
- 99% (Eco Mode)
- Application/Usage
- Equipment
- Features
- Built-in Bypass Switch
- Advanced Battery Management (ABM+)
- Power Description
- Load Capacity (VA)
- 5 kVA
- Load Capacity (Watt)
- 5 kW
- Input Voltage
- 230 V AC
- 120 V AC
- Input Voltage Range
- 176 V AC - 276 V AC
- 100 V AC - 276 V AC
- Output Voltage
- 230 V AC
- 200 V AC
- 208 V AC
- 220 V AC
- 240 V AC
- Input Frequency
- 50 Hz
- 60 Hz
- 40 Hz
- 70 Hz
- Output Frequency
- 50 Hz
- 60 Hz
- Waveform Type
- Sine Wave
- Output Power Factor
- 1
- Display & Graphics
- Display
- LCD
- Management
- Network Management
- Dry Contact
- Interfaces/Ports
- Serial Port
- Yes
- Network (RJ-45)
- No
- USB
- Yes
- USB (HID Compliant) Port
- Yes
- Battery Information
- Number of Batteries
- 15
- Battery Characteristics
- Sealed
- Battery Chemistry
- Lead Acid
- Battery Size
- 12V
- Battery Capacity
- 5000 mAh
- Backup/Run Time (Full Load)
- 3.50 Minute
- Backup/Run Time (Half Load)
- 9.40 Minute
- Hot Swappable
- Yes
- Replaceable Battery
- Yes
- Environmental Conditions
- Thermal Dissipation
- 563 BTU/h
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 130 mm
- Width
- 440 mm
- Depth
- 684 mm
- Rack Height
- 3U

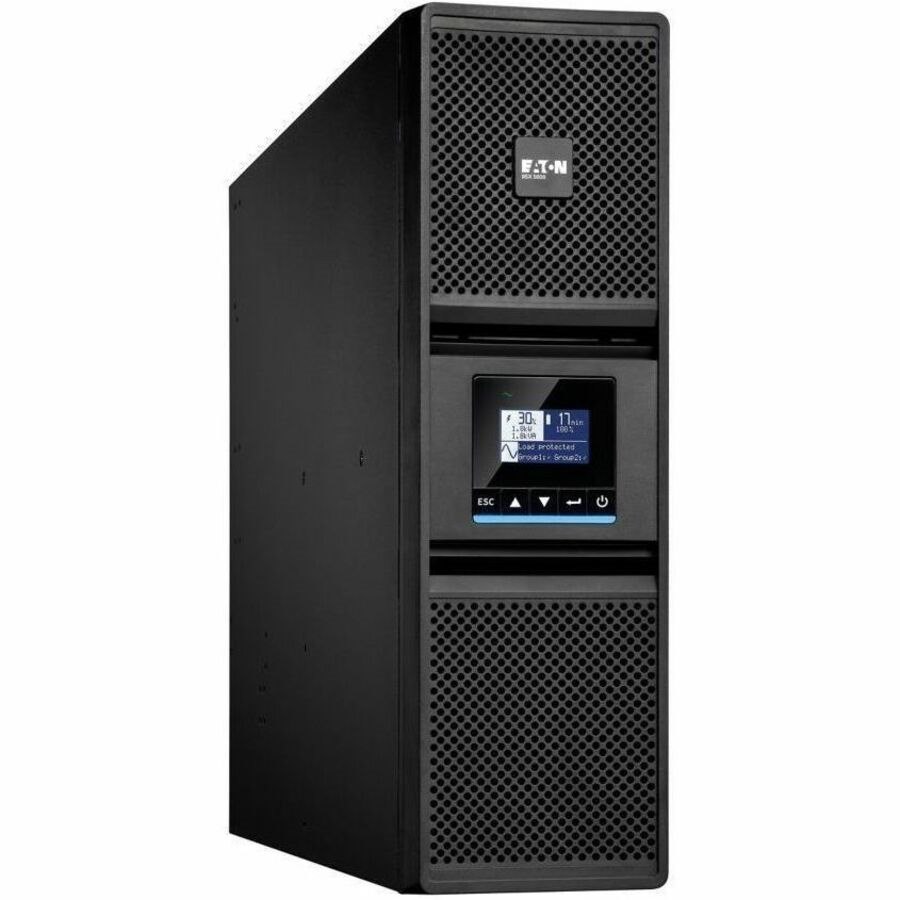

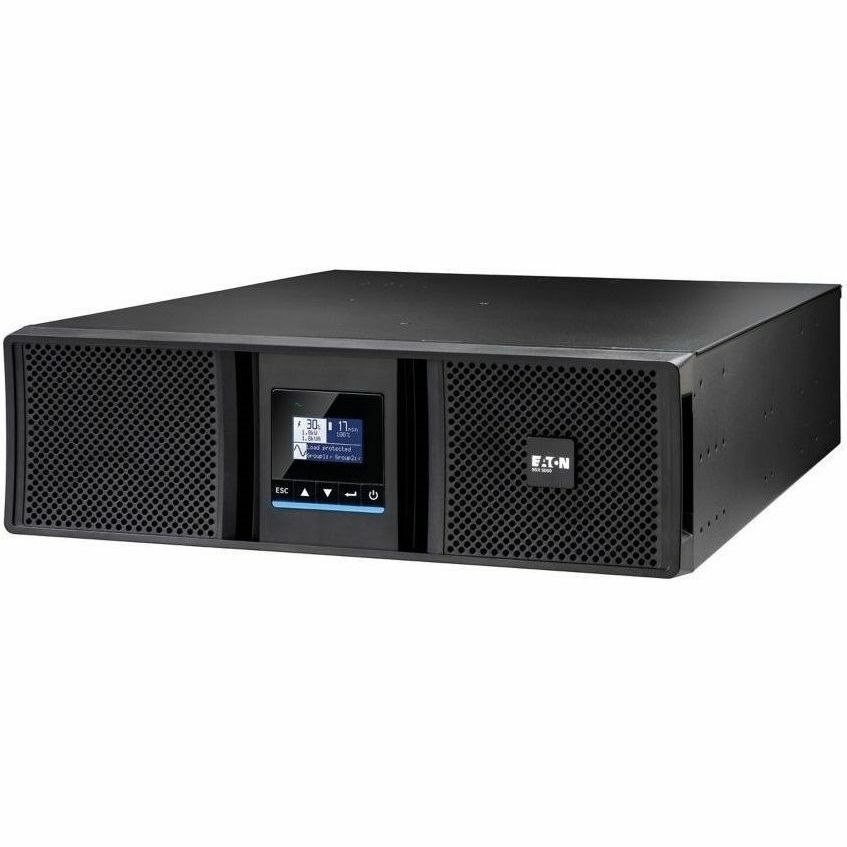

- Form Factor
- Rack/Tower
- Weight (Approximate)
- 43.10 kg
- Miscellaneous
- Package Contents
- 9SX 5000VA Rack/tower UPS
- 2 x Cable Glands
- 2 x IEC-IEC Output Cables (1.2m)
- USB Cable (1.8m)
- Cable Locking Systems
- Supports for Tower Mounting
- Rack-mounting Kit with Brackets and slides for UPS
- Safety Instructions
- Quick Start Guide
- Certifications & Standards
- LVD Directive (CB)
- EMC Directive
- Packaging Directive
- IEC/EN 62040-1
- IEC/EN 62040-2
- IEC/EN 62040-3
- CE
- cULus
- UKCA
- Cm
- Ukr
- RCM
- KCC
- BSMI
- Energy Star
- Yes
- Environmental Compliance
- Battery Directive
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
