- General Information
- Manufacturer
- GIGABYTE Technology, Inc
- Manufacturer Website Address
- http://uk.giga-byte.com
- Brand Name
- Gigabyte
- Product Line
- Ultra Durable
- Product Type

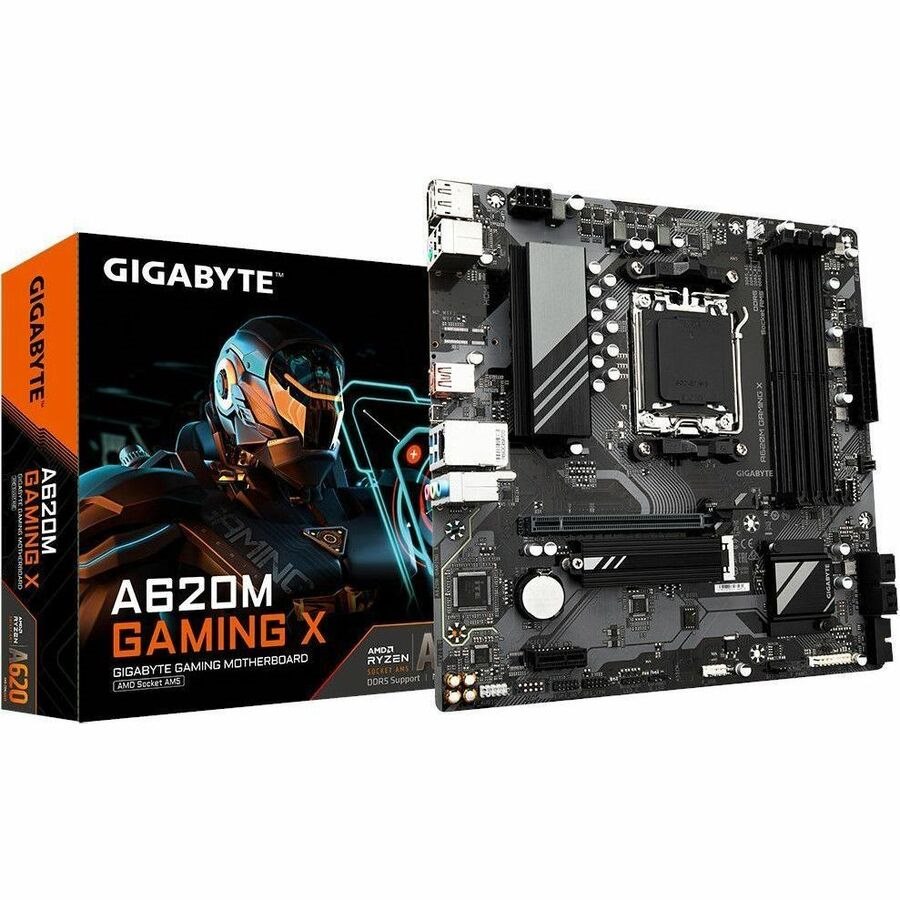

- Gaming Desktop Motherboard
UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
OUTSTANDING THERMAL DESIGN
Gigabyte motherboards' un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best cpu, chipset, ssd stability and low temperatures under full load application and gaming performance.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Connecting the Future - USB Type-C®
The USB Type-C with front and rear USB 3.2 Gen 1 ports provide with speeds up to 5Gbps. With doubled bandwidth compared to the previous generation as well as backward compatibility with USB 2.0, the improved USB protocol is available now over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you're good to go!
- Processor & Chipset
- Chipset Manufacturer
- AMD
- Chipset Model
- A620
- Total Processor Supported
- 1
- Processor Socket
- Socket AM5
- Processor Supported
- Ryzen
- Memory
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 192 GB
- Memory Technology
- DDR5 SDRAM
- Memory Speed Supported
- 7800 MHz
- 7600 MHz
- 7200 MHz
- 7000 MHz
- 6800 MHz
- 6600 MHz
- 6400 MHz
- 6200 MHz
- 6000 MHz
- 5600 MHz
- 5200 MHz
- Intel Optane Memory Ready
- Yes
- I/O Controller
- Controller Type
- Serial ATA
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 10
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Gigabit Ethernet
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 2
- PCI Express Standard
- PCI Express 3.0
- PCI Express 4.0
- Total Number of PCI Express Slots
- 2
- Number of PCI Express x16 Slots
- 2
- Interfaces/Ports
- Total Number of USB Ports
- 3
- Number of USB 3.2 Gen 1 Ports
- 2
- Number of USB 3.2 Gen 2 Type-C Ports
- 1
- HDMI
- Yes
- HDMI Version
- 2.1
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 1
- Onboard Interfaces
- Number of SATA Interfaces
- 4
- Number of M.2 Interfaces
- 1
- Total Number of Onboard USB Ports
- 5
- Number of Onboard USB 2.0 Ports
- 2
- Number of Onboard USB 3.2 Ports
- 2
- Physical Characteristics
- Form Factor
- Micro ATX
- Width
- 244 mm
- Depth
- 244 mm
