• General Information
• • Manufacturer
  • GIGABYTE Technology, Inc
  • Manufacturer Website Address
  • http://uk.giga-byte.com
  • Brand Name
  • Aorus
  • Product Line
  • Ultra Durable
  • Product Type
  • Desktop Motherboard

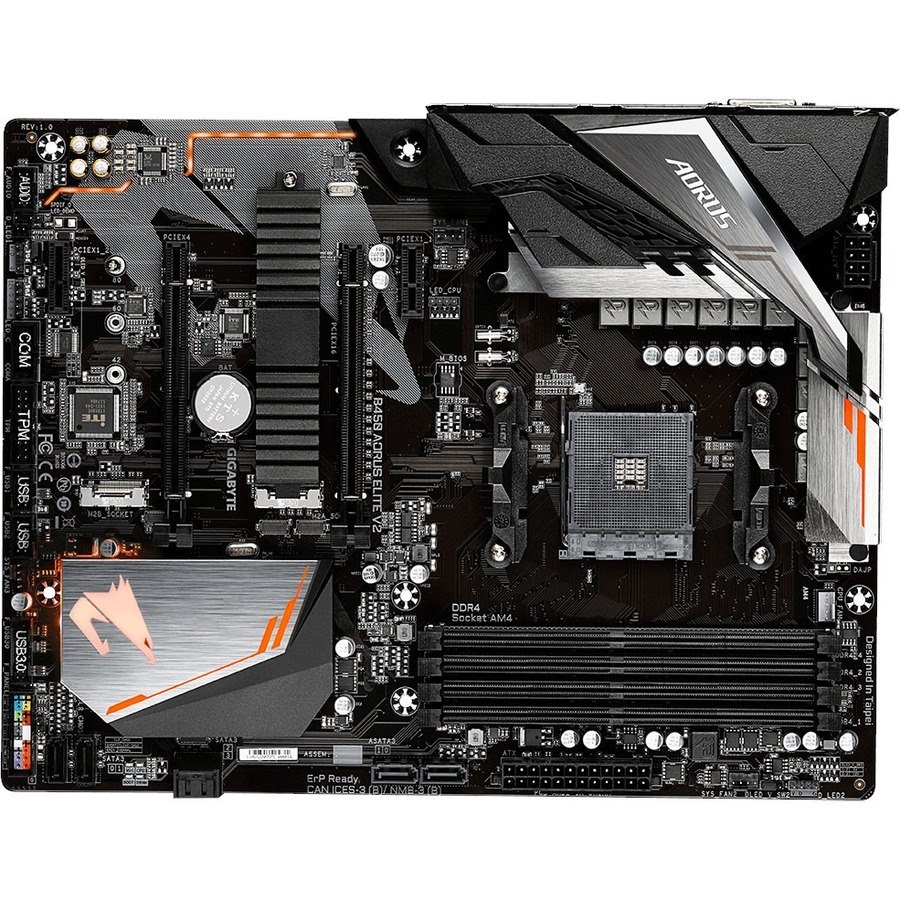

AMD B450 AORUS Motherboard with 8+2 Phases Digital Twin Power Design, Dual M.2 with One Thermal Guard, GIGABYTE Gaming LAN with Bandwidth Management, RGB FUSION 2.0, CEC 2019 Ready

• Supports AMD Ryzen™ 5000 series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• 8+2 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
• HDMI, DVI-D Ports for Multiple Display
• Integrated I/O Shield of Ultra Durable™ Design
• Dual Ultra-Fast NVMe PCIe Gen3 M.2 (x4, x2) with One Thermal Guard
• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
• RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
• Smart Fan 5 Features 6 Temperature Sensors and 4 Hybrid Fan Headers with FAN STOP
• APP Center Including EasyTune™ and Cloud Station™ Utilities
• CEC 2019 Ready, Save Power with a Simple Click

GIGABYTE motherboards are ready to support the latest AMD Ryzen™ 5000 Series Processors and are backwards compatible with AMD Ryzen™ 4000, 3000, 2000 and 1000 Series Processors. With a rich list of features on GIGABYTE motherboards such as Ultra Durable™ Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design on selected models, GIGABYTE motherboards are perfect for users looking to build the best AMD platform systems.

AMD Ryzen™ 5000, 4000, 3000, 2000, 1000 Series Compatible

AMD StoreMI technology

GIGABYTE 400-series maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:

• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users' computing behaviors

8+2 Phases Digital Twin Power Design with Low RDS(on) MOSFETs

B450 AORUS ELITE V2 motherboard use a 8+2 phases Digital Twin Power Design with Low RDS(on) MOSFETs to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

Dual NVMe M.2 PCIe SSDs in RAID

Extreme Performance with NVMe PCIe Gen3 x4, x2 SSDs

With Dual M.2s available on the AORUS 400-series motherboards, configuring RAID Arrays has never been simpler.

AORUS M.2 Thermal Guard

GIGABYTE Ultra-Efficient M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. The M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices as it helps to reduce and dissipate heat before it becomes an issue.
