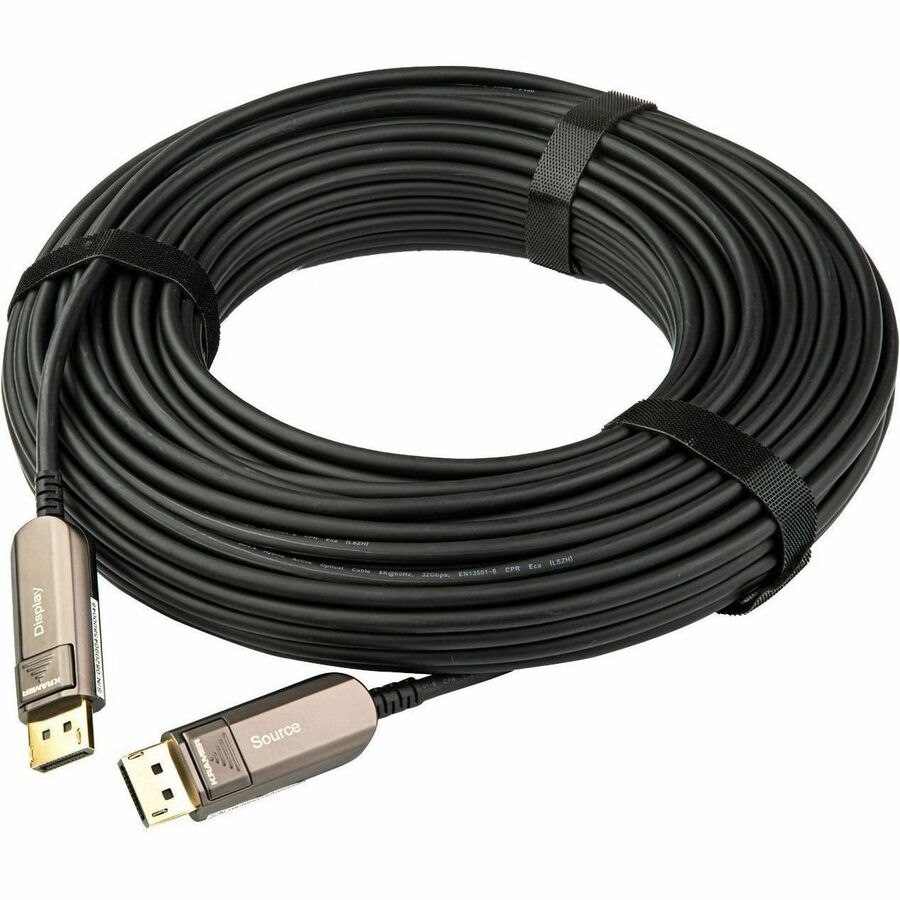

CLS-AOCDP/UF is a DisplayPort™ 1.4, 8K active optical cable (AOC) that features high resolution and data transfer rate. CLS-AOCDP/UF is thin and flexible and requires no external power. User experience is maximized with integrator-oriented features and the latest advances in DisplayPort1.4 technology.
- Latest DisplayPort Technology - Supports 3D, HDCP, EDID, HBR3, DSC, and 8K@60Hz resolution.
- Streamlines Installations - Supports up to 8K@60Hz over long cable runs of up to 100 meters without the need for an external power supply or additional extenders.
- High Data Transfer Rate - Up to 32.4Gbps data rate with 8.1Gbps/lane (HBR3) link rate.
- Supports up to 8 channels of 16 or 24bits linear PCM & 32 to 192KHz sampling rate.
- No External Power Needed - Powers the active units via the DisplayPort connector.
- Thin Construction - 4.8mm diameter.
- Safe Construction - Low smoke & halogen free.
- Compliance - RoHS 2011/65/EU compliant, CE/FCC.
- General Information
- Manufacturer
- Kramer Electronics LTD
- Manufacturer Website Address
- http://www.kramerelectronics.com
- Brand Name
- Kramer
- Product Type
- A/V Cable
- Technical Information
- Cable Type
- Hybrid Fiber Optic
- Fiber Optic Mode
- Multi-mode
- Cable Length
- 15.24 m
- Connector Type on First End
- DisplayPort 1.4 Digital Audio/Video - Male
- Connector Gender on First End
- Male
- Connector Type on Second End
- DisplayPort 1.4 Digital Audio/Video - Male
- Connector Gender on Second End
- Male
- Connector Plating
- Gold
- Jacket Type
- LSHF
- Device Supported
- Audio/Video Device
- American Wire Gauge
- 24/26/28 AWG
- Data Transfer Rate
- 32.4 Gbit/s
- Supported Resolution
- 7680 x 4320
- Features
- AOC Technology
- Flexible
- HDCP
- HDCP 1.4
- HDCP 2.2
- Halogen Free
- Extended Display Identification Data (EDID)
- Display Stream Compression (DSC)
- DPCP
- Bendable
- Physical Characteristics
- Jacket Color
- Black
- Color Details
Black - Sheath
- Jacket Material
- Polyvinyl Chloride (PVC)
