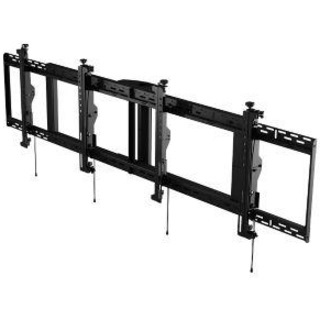

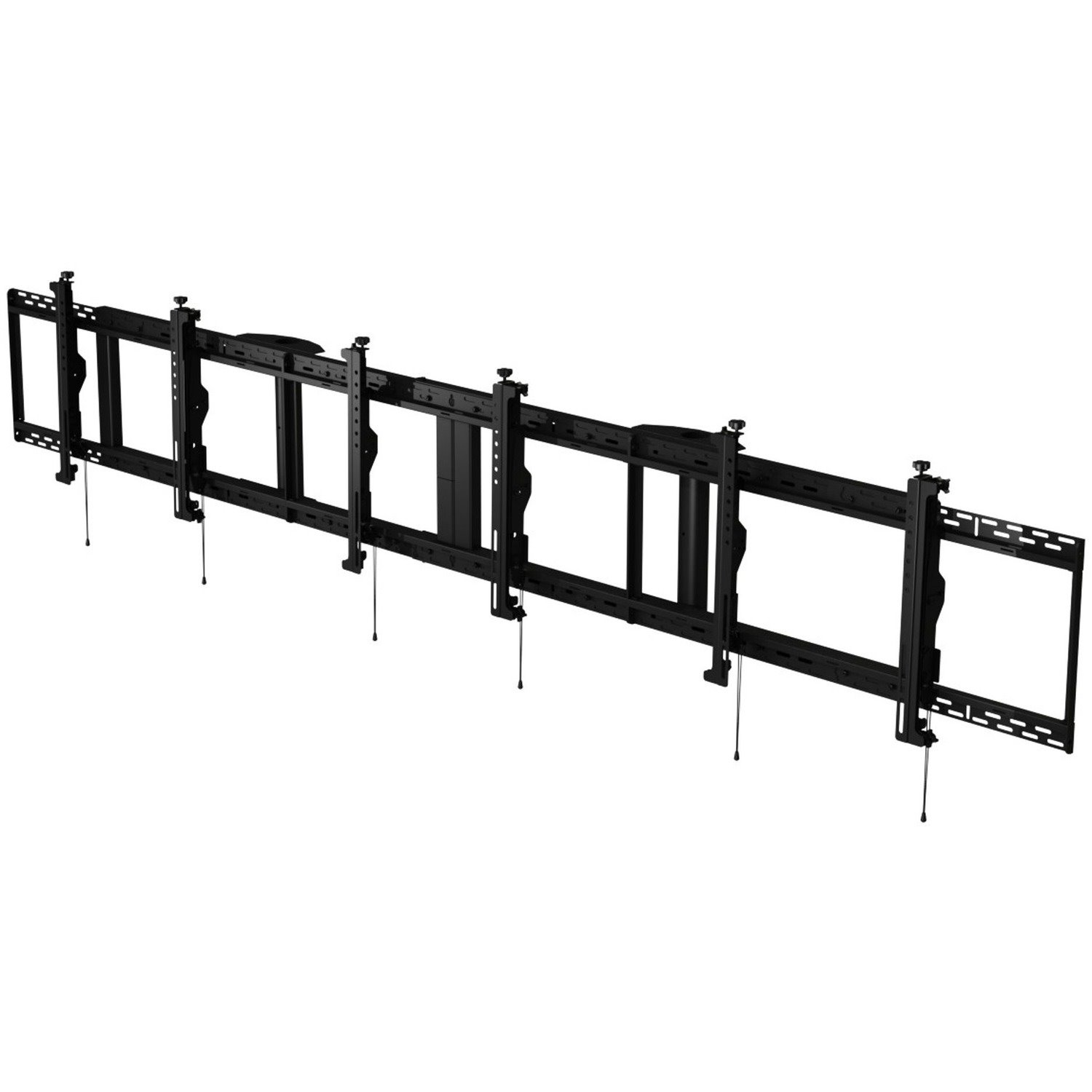

Peerless-AV's quick service restaurant (QSR) Menu Board Ceiling Mount is designed to create a seamless mounting surface through connecting wall plates. Continuous and fixed tilt options allow all displays to be tilted at the same angle with ease, creating flawless alignment. The QSR Menu Board Mount has a tool-less 8pt adjustment to position all of the displays on the same plane. Quick connect adaptor rails quickly attach to the support frame with an auto latch, easing the set up and making the QSR Menu Board Mount the perfect mounting solution.
- General Information
- Manufacturer
- Peerless Industries, Inc
- Manufacturer Website Address
- http://www.peerless-av.eu.com
- Brand Name
- SmartMount®
- Product Series
- DS-MBZ942L-2X1
- Packaged Quantity
- 1 Unit
- Product Type
- Ceiling Mount
- Warranty
- Limited Warranty
- 5 Year
- Product Information
- Device Supported
- Menu Board
- Display
- Number of Displays Supported
- 2
- Maximum Load Capacity
- 90.72 kg
- Minimum Screen Size Supported
- 40" (101.60 cm)
- Maximum Screen Size Supported
- 42" (106.68 cm)
- Features
- Increlock
- Quick Connect
- Adjustable Depth
- Tool-less Adjustment
- Horizontal Adjustment
- Adjustable Column
- Adjustable Length
- Tool-less Micro-Adjustment
- 3-axis
- Flat
- Orientation
- Landscape
- Minimum Tilt Angle
- 0°
- Maximum Tilt Angle
- 15°
- Mount Function
- Adjustable
- Tilt
- Mount Surface
- Wall
- Ceiling
- Durability
- Theft Resistant
- Tamper Resistant
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Finishing
- Powder Coated
- Matte
- VESA Mount Compatible
- Yes
- Mounting Pattern
- 1769 x 400
- Form Factor
- Ceiling Mountable
- Height
- 49.50 cm (19.49")
- Width
- 183.29 cm (72.16")
- Depth
- 18.97 cm (7.47")
- Weight (Approximate)
- 22.27 kg
- Miscellaneous
- Package Contents
- DS-MBZ942L-2X1 Ceiling Mount
- Mount Frame
- Adaptor Rails
- Display Mounting Hardware
- Security Hardware
- Application/Usage
- Quick Serve Restaurant (QSR)
- Ceiling
- Indoor/Outdoor
- Indoor
- Certifications & Standards
- RoHS, TAA, VESA
- Manufacturer Product Class
- Menu Board Ceiling
- Assembly Required
- Yes
- TAA Compliant
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
