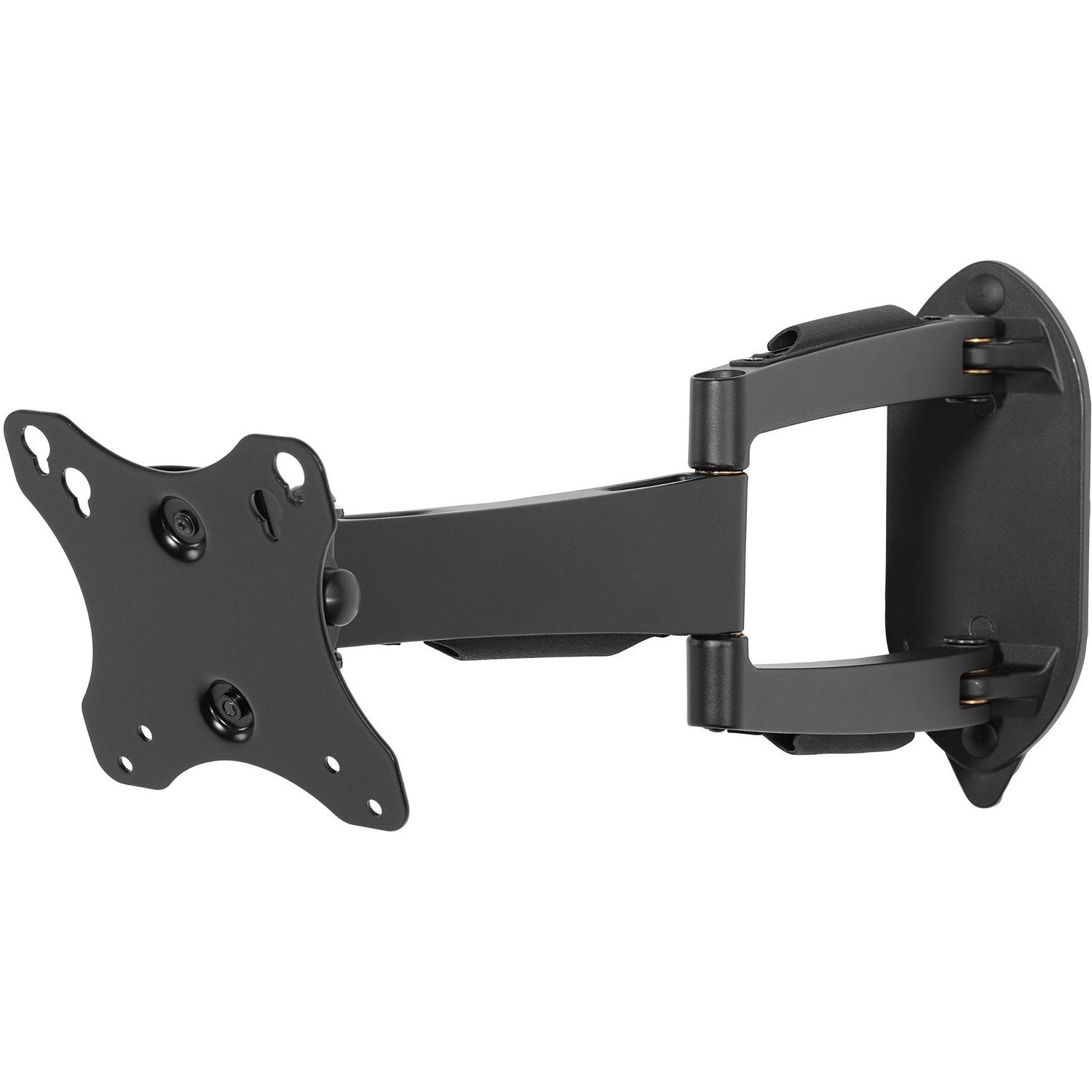

The SmartMount® Articulating Wall Mount series offers the most versatile installation features and mounting options. With SA730P, extend the display up to 16.99" (432mm) or fully-retract it to just 2.77" (7mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers ±35° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
- General Information
- Manufacturer
- Peerless Industries, Inc
- Manufacturer Website Address
- http://www.peerless-av.eu.com
- Brand Name
- SmartMount®
- Product Series
- SA730P
- Packaged Quantity
- 1 Unit
- Product Type
- Wall Mount
- Warranty
- Limited Warranty
- 5 Year
- Product Information
- Device Supported
- Display
- Maximum Load Capacity
- 11.34 kg
- Minimum Screen Size Supported
- 10" (25.40 cm)
- Maximum Screen Size Supported
- 29" (73.66 cm)
- Minimum Adjustable Depth
- 7.04 cm (2.77")
- Maximum Adjustable Depth
- 43.15 cm (16.99")
- Features
- Hook-and-Hang Design
- Retractable
- Tilt
- Articulating
- Swivel
- Cable Management
- Extendable
- Full Motion
- Orientation
- Landscape/Portrait
- Minimum Tilt Angle
- -35°
- Maximum Tilt Angle
- 35°
- Minimum Swivel Angle
- -90°
- Maximum Swivel Angle
- 90°
- Mount Function
- Tilt
- Articulating
- Swivel
- Cable Management
- Extendable
- Wall Mount
- Mount Surface
- Wall
- Durability
- Scratch Resistant
- Physical Characteristics
- Color Family
- Black
- Product Color
- Semi-gloss Black
- Finishing
- Fused Epoxy
- VESA Mount Compatible
- Yes
- Mounting Pattern
- 75 x 75
- 100 x 100
- Form Factor
- Wall Mountable
- Height
- 20.47 cm (8.06")
- Width
- 25.43 cm (10.01")
- Depth
- 43.15 cm (16.99")
- Weight (Approximate)
- 1.61 kg
- Miscellaneous
- Package Contents
- Articulating Wall Mount for 10" to 29" Displays
- Wall and Display Installation Hardware
- Installation Instructions
- Certifications & Standards
- RoHS, TAA, VESA, UL, OSHPD
- Manufacturer Product Class
- Articulating
- Assembly Required
- Yes
- TAA Compliant
- Yes
- UL Listed
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
