What This Product Does

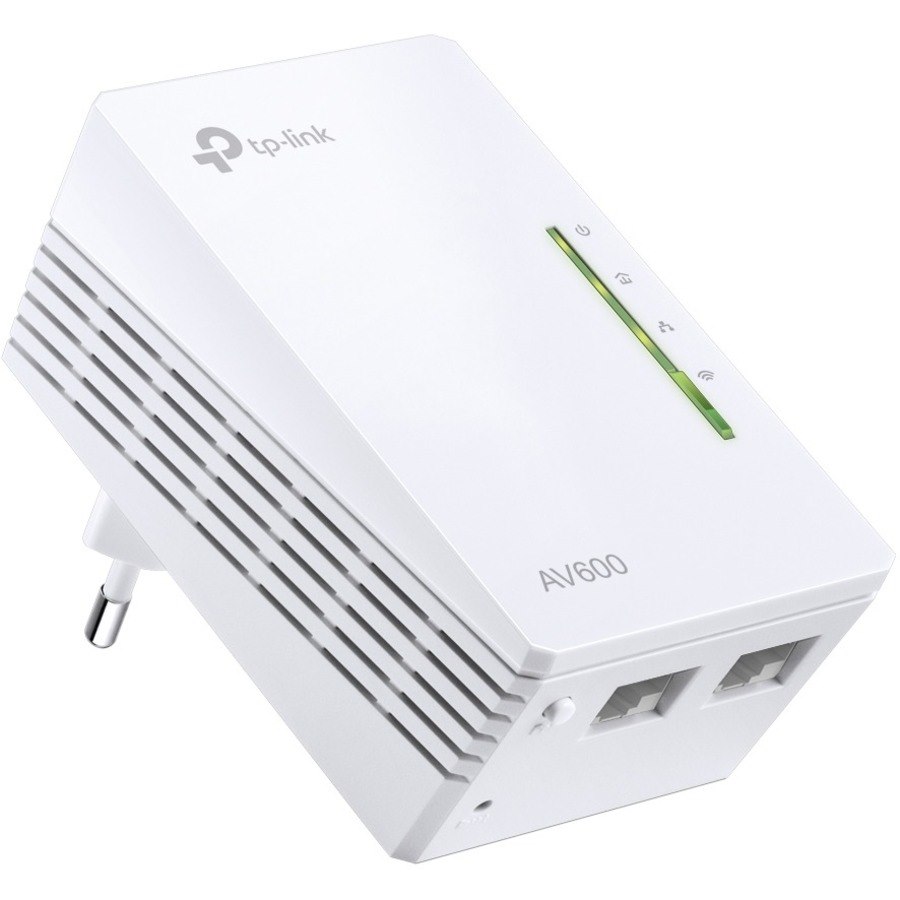

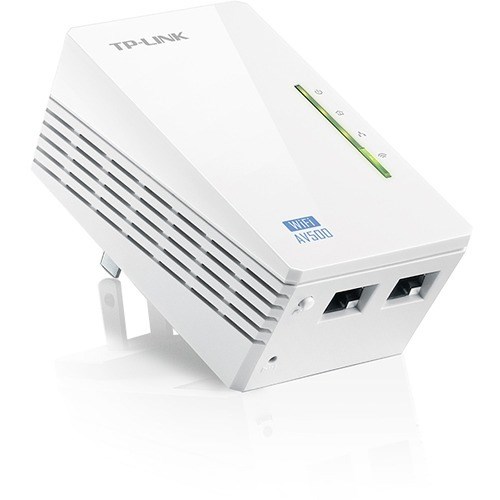

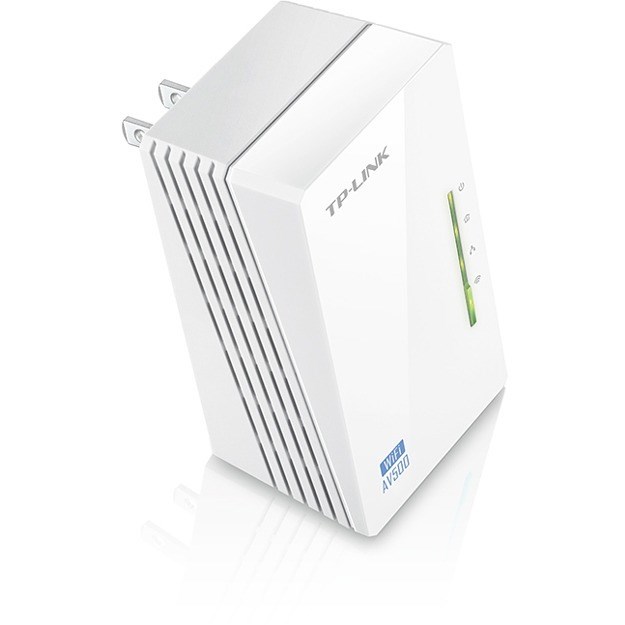

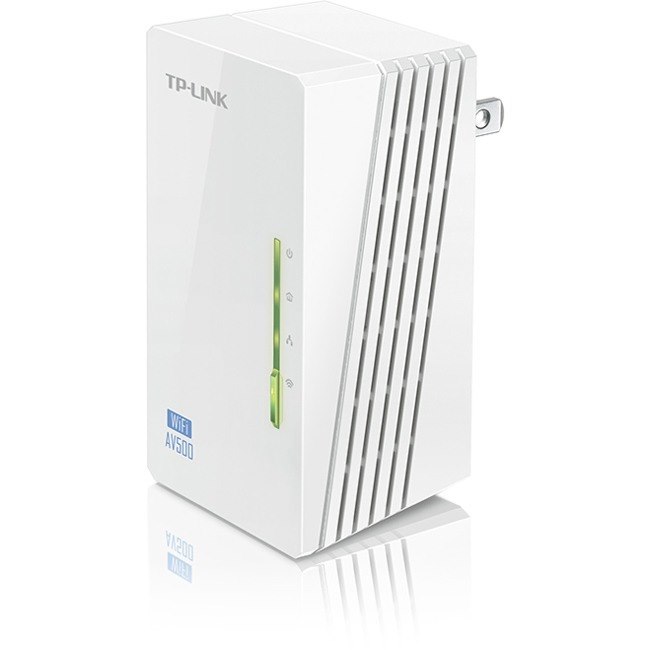

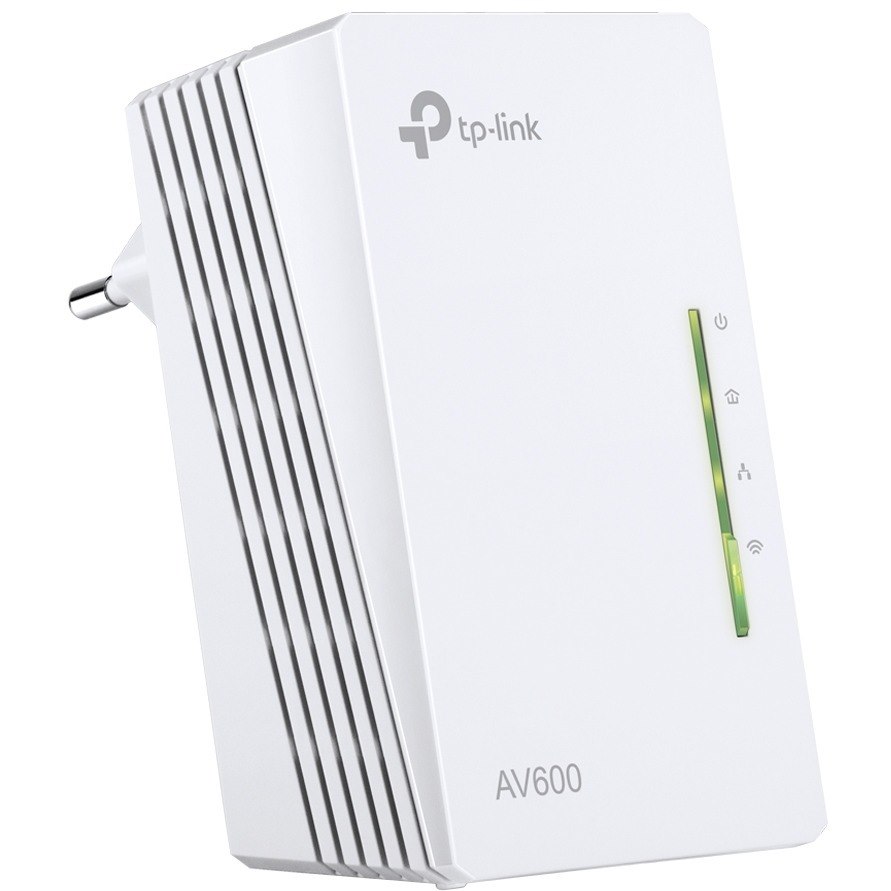

TP-LINK's TL-WPA4220 extends your Internet connection to every room of the house through your home's existing electrical circuitry. The TL-WPA4220 features a Wi-Fi Clone Button enabling Super Range Extension, which means it can automatically copy the SSID and Password of your router. In this way, TL-WPA4220 simplifies your Wi-Fi configuration and allows for seamless roaming within your home network.
One Touch Super Range Extension
With a Wi-Fi Clone Button enabling Super Range Extension, the TL-WPA4220 can automatically copy the wireless network name (SSID) and Password of your router at the push of a button. After the pressing the button, you can place the powerline adapter anywhere you want wired or wireless access and enjoy seamless networking across your entire home or office.
- General Information
- Manufacturer
- TP-LINK Technologies Co., Ltd
- Manufacturer Website Address
- http://www.tp-link.com
- Brand Name
- TP-Link
- Product Type
- Wireless Range Extender
- Technical Information
- Wireless LAN Standard
- IEEE 802.11n
- ISM Band
- Yes
- UNII Band
- No
- ISM Maximum Frequency
- 2.40 GHz
- Outdoor Antenna Range
- 300 m
- Wireless Transmission Speed
- 300 Mbit/s
- Wireless Security
- 128-bit AES
- WEP
- WPA
- WPA2
- WPA-PSK
- WPA2-PSK
- Powerline Transmission Speed
- 62.50 MB/s
- Powerline Transmission Standard
- HomePlug AV
- Interfaces/Ports
- Ethernet Technology
- Ethernet
- Fast Ethernet
- Number of Network (RJ-45) Ports
- 2
- Network (RJ-11)
- No
- PoE (RJ-45) Port
- No
- VGA
- No
- HDMI
- No
- Audio Line Out
- No
- Serial Port
- No
- USB
- No
- Powerline
- Yes
- Management Port
- No
- Physical Characteristics
- Form Factor
- Wall Mountable
- Height
- 94 mm
- Width
- 53.3 mm
- Depth
- 40.6 mm
- Miscellaneous
- Package Contents
- 300Mbps AV500 WiFi Powerline Extender
- 2 x RJ-45 Ethernet Cable (2-Meter)
- Resource CD
- Quick Installation Guide
- System Requirements
- Operating Systems:
- Windows 2000
- Windows XP
- Windows 2003
- Windows Vista
- Windows 7
- Windows 8
- Mac OS X
- Linux
- Certifications & Standards
- CE
- FCC
- 802.3
- 802.3u
- 802.11b
- 802.11g
- 802.11n
- Environmentally Friendly
- Yes
