- General Information
- Manufacturer
- TRENDnet
- Manufacturer Website Address
- http://www.trendnet.com
- Brand Name
- TRENDnet
- Product Condition
- New
- Product Type
- Ethernet Switch

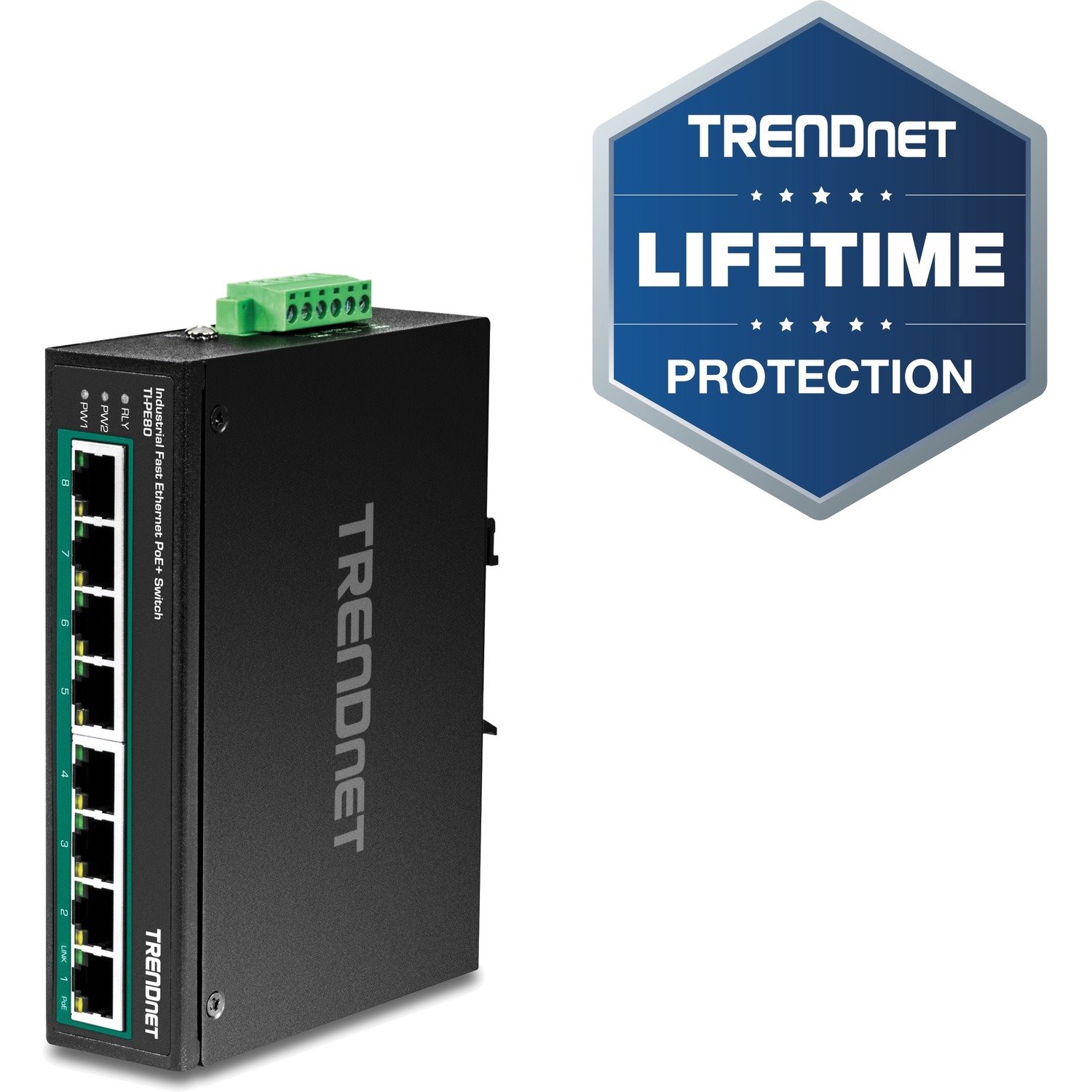

TRENDnet's 8-Port Industrial Fast Ethernet PoE+ DIN-Rail Switch, model TI-PE80, features a rugged IP50 rated metal enclosure. This industrial unmanaged PoE+ switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). Redundant power inputs with overload current protection minimizes network downtime.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Fast Ethernet PoE+ Switch by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power from the industrial unmanaged PoE+ switch. Utilize TRENDnet's industrial PoE+ switch to easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.
enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 - 75 °C (- 40 - 167 °F)) for harsh environments.
- Interfaces/Ports
- Total Number of Network Ports
- 8
- Modular
- No
- Port/Expansion Slot Details
- 8 x Fast Ethernet PoE+
- Media & Performance
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Fast Ethernet
- Network Technology
- 100Base-X
- Network & Communication
- Layer Supported
- 2
- Management & Protocols
- Manageable
- No
- Power Description
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Physical Characteristics
- Form Factor
- DIN Rail Mountable
- Wall Mountable
- Height
- 76.2 mm
- Width
- 127 mm
- Depth
- 254 mm
- Weight (Approximate)
- 623.7 g
- Miscellaneous
- TAA Compliant
- Yes
- NDAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Certification
- China Environmental United Certification Center (CEC)
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
