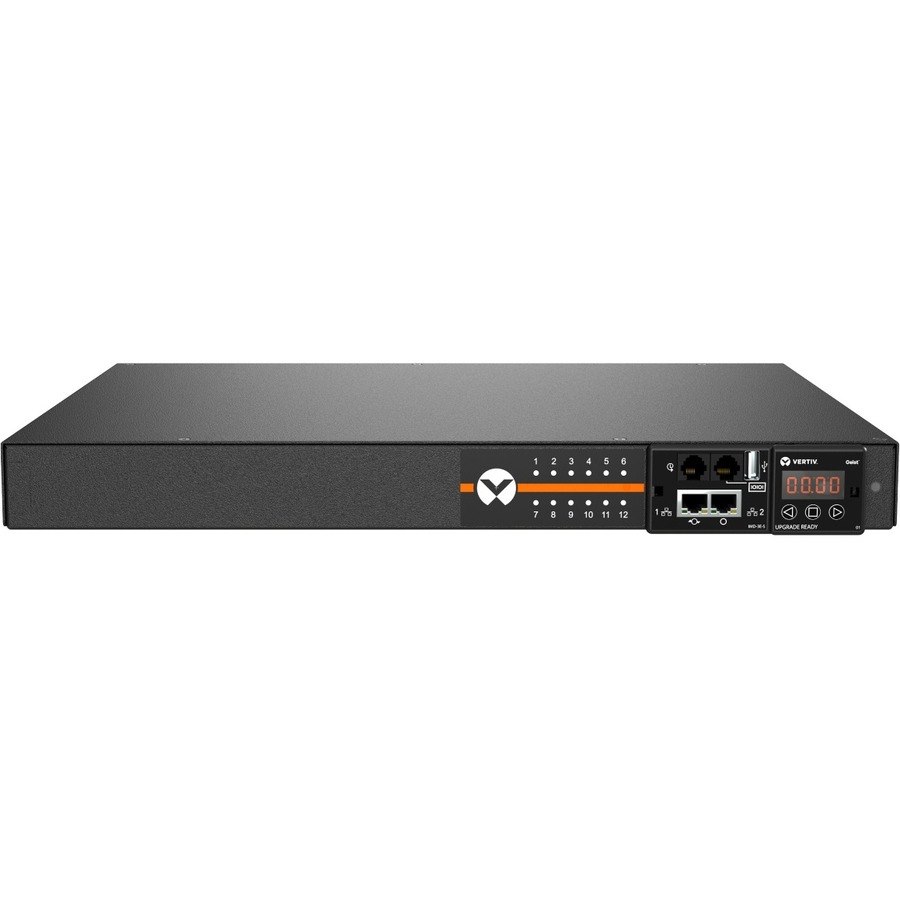

Upgradeable Switched Outlet Level Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. With the Geist Upgradeable hot-swap technology, users may easily update the rPDU technology with the addition of the appropriate Interchangeable Monitoring Device (IMD) as business needs change.
Benefits
- Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control.
- Reliable power distribution with local and remote outlet-level power monitoring options offer quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime.
- Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
- Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
- Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.
- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertivco.com
- Brand Name
- Vertiv Geist
- Product Series
- rPDU
- Product Type
- PDU
- Technical Information
- PDU Type
- Switched Outlet Monitored
- Plug/Connector Type
- IEC 60320 C20
- Plug/Connector Detail
- 1 x IEC 60320 C20
- Receptacle Type
- Combination C13/C19
- Receptacle Detail
- 12 x Combination C13/C19
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 100 V AC - 240 V AC
- Output Voltage Range
- 100 V AC - 240 V AC
- Power Rating (Watt)
- 3.60 kW
- Input Current
- 20 A
- Management
- Management
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- TACACS+
- Remote Outlet Switching
- Yes
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Mounting Orientation
- Horizontal
- Mount Type
- Rack-mountable
- Form Factor
- Hot-swappable
- Height
- 43.7 mm
- Width
- 431.8 mm
- Depth
- 304.8 mm
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- China Restriction of Hazardous Substances (China RoHS)
